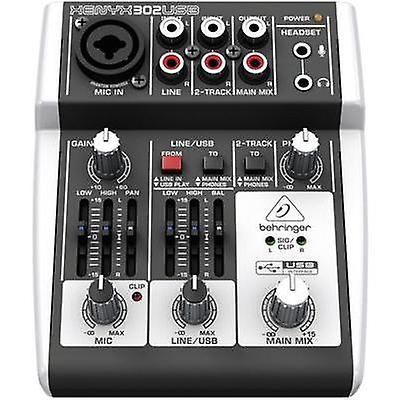

Behringer 302Usb 5 Input Mixer W/Xenyx Preamp

Product Description
Premium 5-input mixer with XENYX mic preamp and USB/audio interface.
The XENYX 302USB is ideally suited for a small home studio or the on-the-go recording enthusiast. At approximately 4" long and 5" wide (117 x 135 mm), the XENYX 302USB respects your desk space, while providing an XLR & 1/4" combination socket, stereo USB/Line channel plus a dedicated 2-Track input.

Dont let the XENYX 302USB' diminutive size fool you”this little gem is loaded with features typically reserved for larger, more expensive mixers. For instance, we equipped the Mic input with our XENYX mic preamp, which is legendary for its sonic clarity and high-headroom performance. Behringer also gave the Mic and Line/USB channels our 2-band British-style EQs (Low and High), and provide a 2-Track input that can be assigned to either the Main Mix or Phones.
You can even power the XENYX 302USB from your computer' USB port, which is great for capturing the sounds of migratory birds in flight, or for posting your podcast straight to the Web. Sports announcers, radio and TV reporters will definitely want one of these in their field bag. Incredible sonic performance, versatility and extreme value in a small package”that' the XENYX 302USB!
Ultra-compact and ultra-low noise analog mixer with USB/Audio interface
Powered through USB or external adaptor
Built-in stereo USB/Audio interface to connect directly to your computer
Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins and ultra-low latency driver downloadable
State-of-the-art XENYX Mic Preamp comparable to stand-alone boutique preamps
Neo-classic "British" 2-band graphic EQ for warm and musical sound
2-Track input assignable to Headphone or Main Mix output
Main Mix plus separate Phones output
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
Order a handy little mixer you can grab with your laptop on the way out the door.
Microphone Input
Type: XLR/1/4 " combo connector, electronically balanced
Mic E.I.N. (20 Hz - 20 kHz)
- @ 0 Î source resistance -130 dB / -133.1 dB A-weighted
- @ 50 Î source resistance -128 dB / -131.5 dB A-weighted
- @ 150 Î source resistance -127 dB / -129.8 dB A-weighted
Frequency response: (“1 dB) 18 Hz - 40 kHz
Frequency response: (“3 dB) < 10 Hz - 75 kHz
Gain range: +15 dB to +55 dB
Max. input level: +12 dBu @ +10 dB Gain
Impedance: 2 kÎ
Signal-to-noise ratio: 98 dB / 101 dB A-weighted (0 dBu in @ +22 dB Gain)
Distortion (THD+N): 0.013%
Frequency Response (Mic In, Main Out)
18 Hz - 40 kHz: +0 dB / -1 dB
10 Hz - 75 kHz: +0 dB / -3 dB
Stereo Line Input
Type: RCA jacks, unbalanced
Impedance: 6 kÎ
Gain range: -ˆž to +20 dB
Max. input level: +20 dBu
2-Track In
Type: RCA jacks, unbalanced
Impedance: 20 kÎ
Max. input level: +20 dBu
Headset Mic In
Type: 1„8" TRS mini jack
Impedance: 6 kÎ
Max. input level: +22 dBu @ Gain Min
Low: 80 Hz / ±15 dB
High: 12 kHz / ±15 dB
Main Outputs
Type RCA, unbalanced
Impedance: 470 Î
Max. output level: +22 dBu
Phones Output
Type: 1„8" TRS mini jack
Max. output level: +7 dBu / 150 Î
System Data (Noise)
Main mix @ -ˆž, channel fader @ -ˆž: -96 dBu / -101 dBu A-weighted
Main mix @ 0 dB, Î channel fader @ -ˆž: -80 dBu / -85 dBu A-weighted
Main mix @ 0 dB, channel fader @ 0 dB: -80 dBu / -85 dBu A-weighted

External USB Switching Power Supply
Mains voltage: 100-240 V, 50/60 Hz
Power consumption: 0.9 W
Power connector: USB, type A
Connector: Type B
Converter: 16-bit
Sample Rate: 48 kHz
Dimensions (H x W x D): 1.8 x 4.5 x 5.4", (46 x 114 x 136 mm)
Weight 0.83 lb., (0.38 kg)
